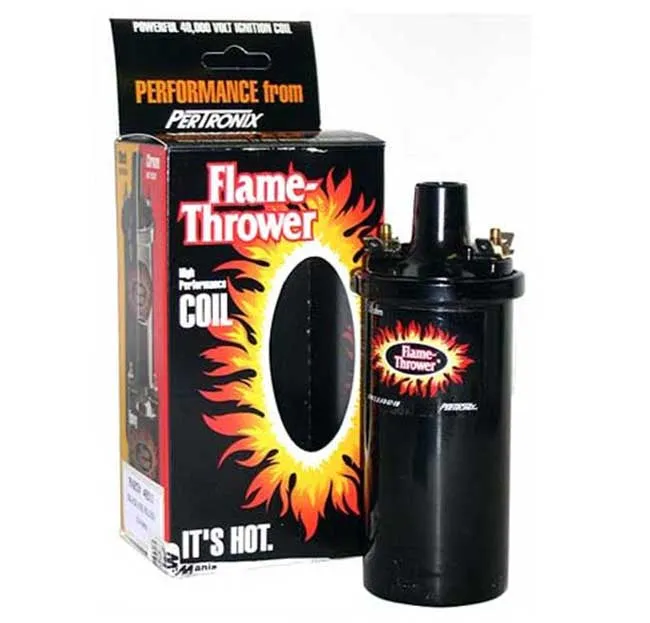

3 Ohm replacement coil for V700, AMbassador, Eldorado, V7 Special and 850GT
Replaces:
12716504
26716504
Manufacturer's Part Number:40611
Part Type:Ignition Coils
Product Line:PerTronix Flame-Thrower Ignition Coils
Coil Wire Attachment:Female/Socket
Coil Style:Canister
Primary Resistance:3.000 ohms
Coil Internal Construction:Epoxy
Coil Color:Black
Maximum Voltage:40,000 V
Turns Ratio:73:1
Secondary Resistance:8.5K ohms
Inductance:11.1 mH
Peak Current:5 amps
Spark Duration:1.5 mS
Mounting Bracket Included:No
Coil Wire Included:No
Ballast Resistor Included:No
Coil Shape:Round
Diameter (in):2.155 in.
Height (in):6.000 in.
Quantity:Sold individually.
